Device Selection

There are three devices to choose from; The ENDOTINE Forehead, The Ultratine Forehead and the ENDOTINE Triple.

The ENDOTINE Forehead is the original ENDOTINE device. It comprises an anchoring post, a triangular platform which when placed sits flush with the skull and 5 spikes or tines. This device will resorb in approximately 9-12 months and is available in two sizes; the 3.0 and 3.5. The size of the device relates to the length of the tines and as a general rule, the 3.5 should be used where the patient has very heavy brow ptosis or has had previous brow surgery. For all other cases the 3.0 should be the device of choice.

The Ultratine Forehead is exactly the same design as the ENDOTINE Forehead however the Ultratine is made from a different formulation of the same co-polymer which means it will resorb much faster. Resorbtion time for the Ultratine is approximately 60-90 days and is therefore ideal if you want the benefits of ENDOTINE fixation but are concerned about the device remaining in place for a long period. It is important to note however that the Ultratine device is quite brittle and care should be taken when placing it to ensure it is not damaged. Device selection is the same as for the ENDOTINE forehead.

The ENDOTINE Triple was designed to provide an option suitable for patients with very thin tissue where device palpability may be an issue. The Triple is a smaller triangle with only three tines and comes preloaded on an insertion tool and is packed with a sterile drill bit.

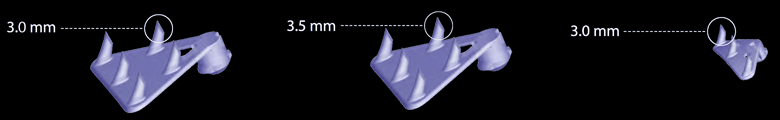

Endotine Forehead Devices
3mm Endotine Forehead 3.5mm Endotine Forhead Endotine Triple


Ordering codes are below however if you would like further information on operative technique, please click here or for instrumentation requirements please click here.

Ordering Codes

22202 ENDOTINE Forehead 3.0 (pair)
22102 ENDOTINE Forehead 3.5 (pair)
CFD-010-0167 ENDOTINE Triple
23202 Ultratine Forehead 3.0 (pair)
23102 Ultratine Forehead 3.5 (pair)
CFD-010-4320 ENDOTINE Forehead Instrument Kit
CFD-010-4313 ENDOTINE Forehead Drill Bit
CFD-899-4000 MicroAire Manual Surgical Drill


To learn more about MicroAire's Aesthetic products, send an e-mail to mail@advantechsurgical.com or call 0845 130 5866.
